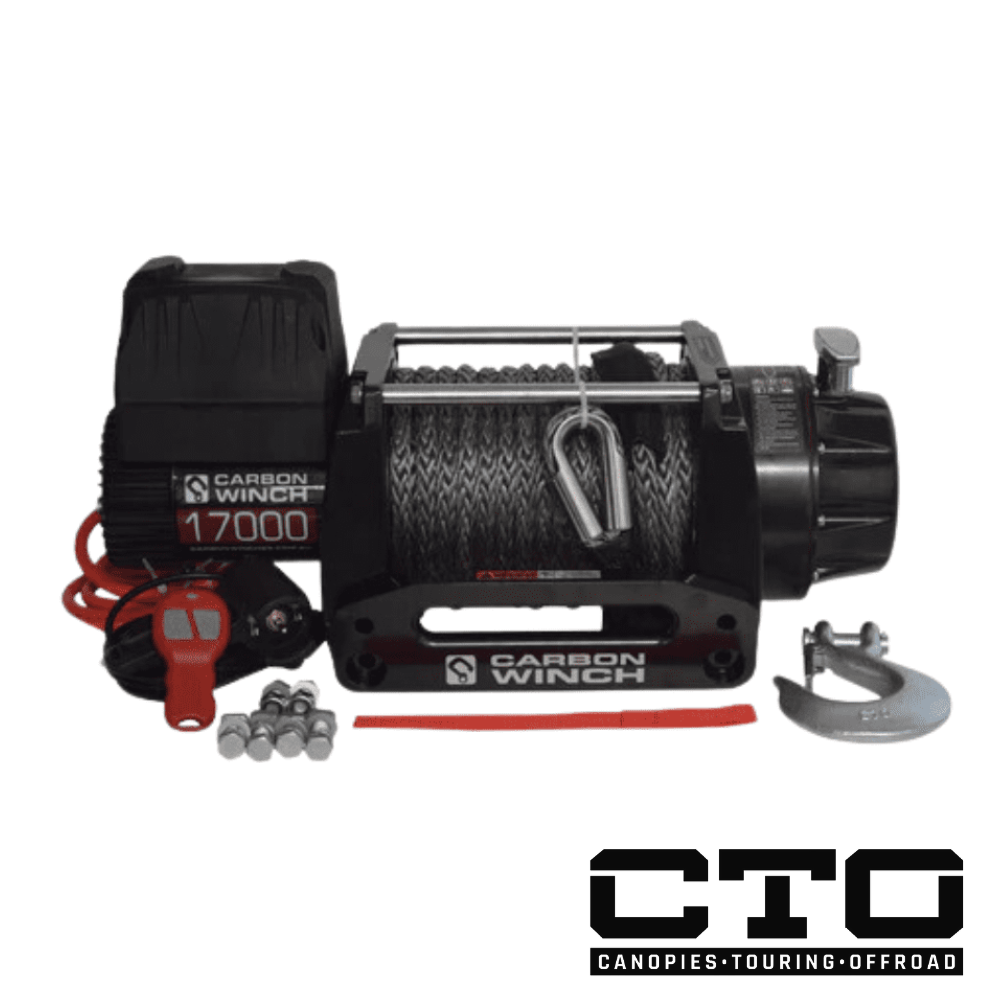

Carbon Winch 24V 17000LB Heavy-Duty Winch with Synthetic Rope – Unrivaled Strength for Off-Road Recovery

The Carbon Winch 24V 17000LB Heavy-Duty Series is engineered for off-road enthusiasts who demand exceptional performance and reliability. Designed by Australian off-road innovators KPD Industries, this winch has been rigorously tested in extreme environments, including the unforgiving Australian Outback, Iceland, and the Middle East.

Exceptional Power and Endurance

• Heavy-Duty Motor: Equipped with a 6.6HP series wound motor, this winch delivers extraordinary torque to overcome the toughest challenges effortlessly.
• Reliable Gearbox: The 3-stage planetary gearbox ensures seamless and durable performance, even under the harshest conditions.
• Advanced Braking System: An automatic brake system engages proportional to the load, offering superior control and safety.

Precision and Convenience

Engineered for ease of use, the Carbon Winch 24V 17000LB combines power with precision, making off-road recovery simple and efficient.

• Dual Remote Control Options: Operate the winch with a wired remote or the wireless remote, giving you flexibility and convenience.
• Rapid Freespooling: A rotating ring gear clutch allows for quick and effortless wire rope payout.
• Enhanced Gear Strength: The gearbox features 2.0 module gears, providing industry-leading reliability and toughness.

Unparalleled Specifications for Off-Road Excellence

This winch is built to exceed expectations, offering unmatched performance and durability for the most demanding recovery operations.

• Rated Line Pull: 17,000 lbs (7,710 kg) for single-line applications.
• Synthetic Rope: Durable and lightweight, with an impressive 11,000 kg breaking strain.
• Gear Ratio: 360:1 for optimal pulling power.
• Drum Dimensions: 3.5’’ x 8.8’’ (90mm x 224mm) for high-capacity performance.
• Fairlead: Heavy-duty roller fairlead for smooth rope operation.

Key Features

• Superior Torque Output: Heavy-duty series wound motor ensures consistent performance in high-temperature conditions.
• Durable Gearbox: The 3-stage planetary gearbox provides unmatched reliability, even in extreme environments.
• Safety-Focused Design: Automatic braking system enhances safety under full loads.
• Convenient Operation: Choose between wired and wireless remote control for ultimate convenience.
• Quick Freespooling: Freespooling clutch simplifies recovery operations.

Specifications

• Part Number: CW-17HD
• Rated Line Pull: 17,000 lbs (7,710 kg)
• Motor: 24V DC, 6.6HP series wound
• Remote Control: Wired (3.7m lead) and wireless options
• Geartrain: 3-Stage Planetary, 2.0 module gears
• Gear Ratio: 360:1
• Synthetic Rope: 24m x 11mm, 11,000kg breaking strain
• Fairlead: Roller fairlead
• Drum Dimensions: 3.5” x 8.8” (90mm x 224mm)
• Winch Dimensions: 23.1” x 8.5” x 9.7” (587mm x 215mm x 246mm)
• Shipping Weight: 54kg (119lbs)

Why Choose the Carbon Winch 24V 17000LB?

With its proven performance and durability, this heavy-duty winch is the ultimate choice for serious off-roaders. Whether navigating rocky trails or tackling deep mud, trust the Carbon Winch 24V to deliver when it matters most.

Looking for unmatched strength and reliability for your next adventure? The Carbon Winch 24V 17000LB Heavy Duty Series Winch with Synthetic Rope is built to handle the toughest challenges.
